50mm2 PE PVC Jacket Wire Extrusion Machine 200M/Min

Name: 50mm2 PE PVC Jacket Wire Extrusion Machine 200MMin
Brand: HOOHA
Price: 72 USD

50mm2 PE PVC Jacket Wire Extrusion Machine 200M/Min Manufactures

Brand Name : HOOHA

Model Number : HH-E-90

Certification : CE/ISO/CCC

Place of Origin : Guangdong

MOQ : 1 set

Price : US＄72,800 ~ 78,800/1set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 3set/1 month

Delivery Time : 30 Working Days

Packaging Details : PE film, wood frame, wooden box as per negotiation

Condition : New

Color : Customized

Voltage : Apply to local indusrty voltage

Cable Insulation : PVC, PE

Speed : 200 M/Min

Warranty : 12 Months

Driven Type : Electric power

Screw : Single-Screw

HS Code : 8479400000

Measurment : 30m*4m*4m

Workers need : 3 workers

Contact Now

HH-E-90 Extrusion Machine for Electrical Wire and Power Cable PE PVC Insulation and Jacket

This production line is mainly used for extruding PE PVC insulation or jacket for electrical wire, power cable and communication cable etc with section area 6-50 square mm.

♦Precise extrusion process control, the error of extrusion outer diameter can be controlled within ±0.01mm

♦Optional removable horizontal extruder accessorial machine or other forms of accessorial machine to meet the diversified technical requirements of single injection, double injection and nylon co-extrusion.

♦Easy operation, start-up business friendly

♦Life-long maintainance with timely service and low cost

NO.	Description	Quantity	Picture
1	800-1600 End shaft pay-off stand	1 set
2	600/800 two-wheel auxiliary extraction machine	1 set
3	90 Host extruder	1 set
4	Electrical control box	1 set
5	2.5m movable water tank	1 set
6	12m fixed water tank	1 set
7	12m wire accumulator	1 set
8	800kg caterpillar tractor	1 set
9	Diameter detector	1 set
10	Ink jet printer	1 set
11	15kv spark tester	1 set
12	800-1600 End shaft take-up stand	1 set
13	Spare parts and tools	1 set
14	Diagram, operation and maintenance manual	1 set

No.	Items	Features
1	Inlet Wire Diameter	2～20mm
2	Finished Wire Diameter	3～25 mm
3	Cross Sectional Area	6～50 square mm
4	Extrusion Speed	Max 200 m/min
5	Extrusion Capacity	280 kg/h
6	Installed Capacity	85 kva
7	Voltage	380KV, can be customized
8	Weight	6000 kg
9	Measurement (LWH)	263.53.5 m
10	Workers recommendation	3 workers

Our engineer team has over 5-year experience working overseas for customer on-site service. Therefor, we can provide you widely range of support, such as overseas on-site installation, talent training, long-term technology updating services,etc.

Product Tags:

Wire Extrusion Machine 200M/Min

50mm2 Wire Extrusion Machine

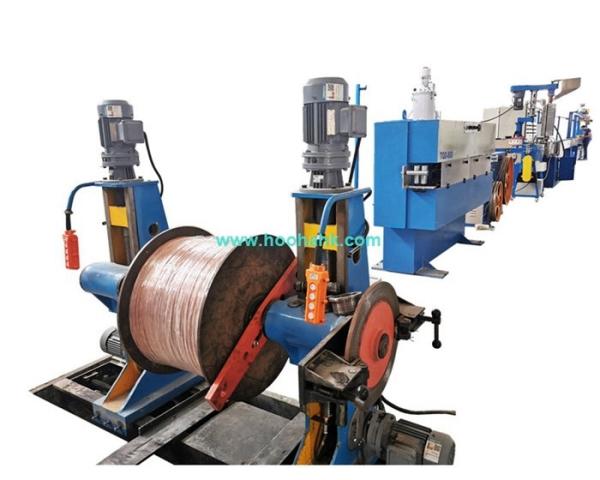

50mm2 PE PVC Jacket Wire Extrusion Machine 200M/Min Images
